REPLACING THE CLOCK BULB
(project by Ian Barnett)
| PARTS | TOOLS |
|
12v/1.2w lamp |
Tools: Phillips Screwdriver, Thin nose pliers |
|
STEP |
ACTION
|
|
1
|
Remove ashtray inner section (by lifting out) |
|
2
|

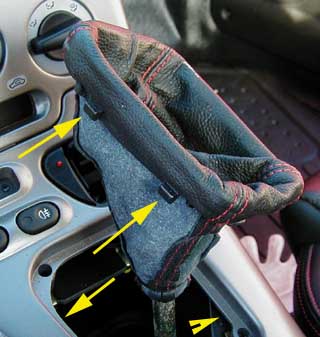

Remove the gear stick gaiter by pressing the centre of the surround in toward the gear stick then lifting. It is held by 4 lugs show below |
|
|
|
|
3
|

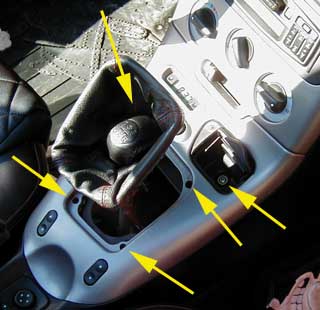

Remove the 5 screws shown by yellow arrows. Lift out the ashtray and remove the LED (by pushing it through the panel). Lift the console panel from the handbrake end to release it |
|
|
|
4
|

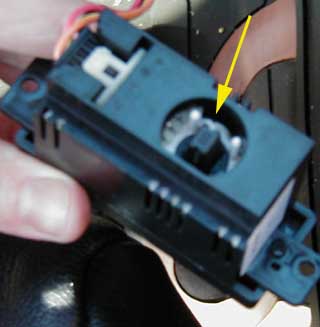

The bulb holder is located at the base of the clock as shown, it can be released with a quarter turn (you may need some pliers to grip it) |
|
|
|
5
|

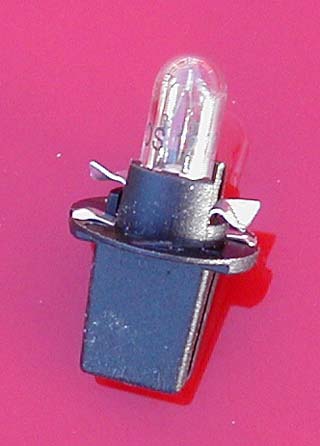

Remove the old bulb from the holder by pulling it and insert the new one |
|
|
|
6
|

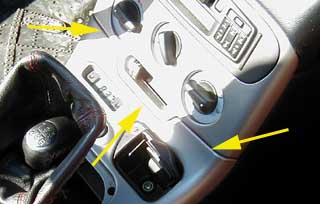

Put everything back together in reverse order, make sure you locate the 3 panel lugs correctly when refitting the console panel |
|
